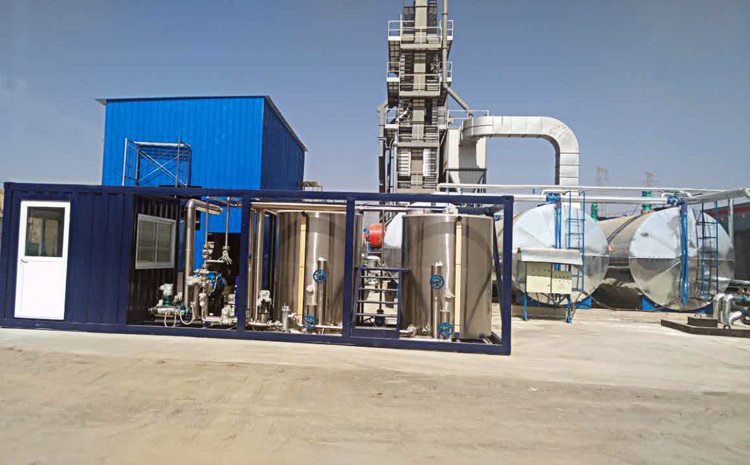

ENUO bitumen emulsion plant is designed for efficient bitumen emulsion production; it features a simple structure and user-friendly operation, with a production capacity of 8-10 t/h. The plant utilizes a high-speed rotor-stator colloid mill to shear and emulsify bitumen and soap water, ensuring consistent particle distribution for easier storage and application.
Working Principle
There is stator and rotor inside the colloid mill, and the rotor is rotating at a very high speed driven by motor. When the bitumen and soap water are pumped into the colloid mill, they will be sheared for hundreds of thousands times. The mixture are sheared, pushed centrifugally, rubbed, hit and torn, fulfilling the dispersion, shearing and emulsion. The particle distribution becomes narrower and it will be easier to be stored and applied.
Smart Design & Key Components
Precise Flow Control
Independent control of bitumen and soap water flows, with gear and centrifugal pumps, flowmeters, and an on-line bitumen content analyzer.
Corrosion-Resistant Materials: Stainless steel soap water tanks, pipes, and valves, offering high resistance to heat and corrosion.
Efficient Heating: Aluminum silicate-insulated soap water tanks with built-in heat transfer oil pipes for rapid heating.
High-Performance Colloid Mill: Stainless steel rotor and stator with heat transfer oil insulation, driven by a 37KW motor for multi-level shearing and high-quality emulsion.
Heat-Insulated Bitumen Pump: High-viscosity pump with a safety valve for reliable operation.
User-Friendly Control System: Independent control room with PLC-based temperature and rate control for easy and visual operation.

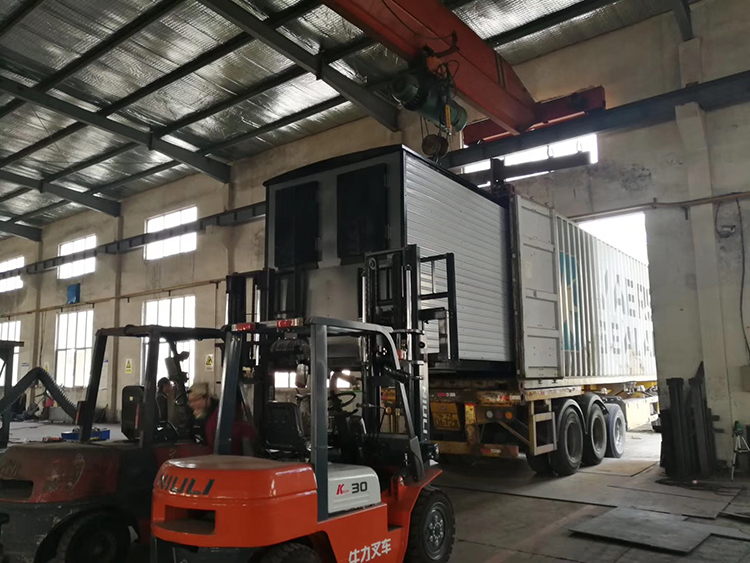

Compact & Mobile: Entire system housed in a container (9000*2300*2590mm) for easy transport and installation.
If you want to boost your bitumen emulsion production efficiency, reduce operational hassles, and ensure consistent quality, ENUO Bitumen Emulsion Plant is the answer. Contact us today to learn more and take your projects to the next level.
