5 Ton Asphalt Recycler

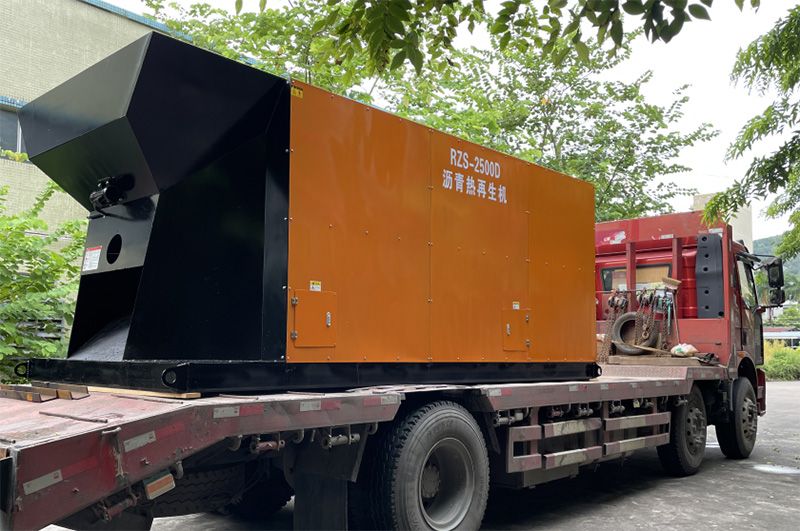

ENUO 5-ton asphalt recycler RZS-2500 has recently completed its final assembly and rolled off the assembly line. It is a very friendly helper for users who need faster production efficiency and portab

  • Model: RZS-2500D
  • Tank volume: 2650 KG
  • Chassis total weight: 4750 x 2020 x 1980 mm
  • Heating area size: 2500 L

ENUO 5-ton asphalt recycler RZS-2500 has recently completed its final assembly and rolled off the assembly line. It is a very friendly helper for users who need faster production efficiency and portability. The tank capacity of this asphalt recycler reaches 2500L, it can heat 2 tons of hot asphalt mixture at a time, and the output can reach 5-6 tons per hour.

crack sealing machine

RZS-2500 asphalt recycler can provide new asphalt mixture or recycle old road materials for the disease treatment of various asphalt pavements such as municipal roads, expressways, bridges, and residential areas. At the same time, it can also provide hot asphalt for small-area pavement paving Mixture. When dealing with common pavement ailments such as ruts, potholes, network cracks, and chokes, it can quickly deliver enough hot asphalt mix for construction without being limited by other external factors.

crack sealing machine

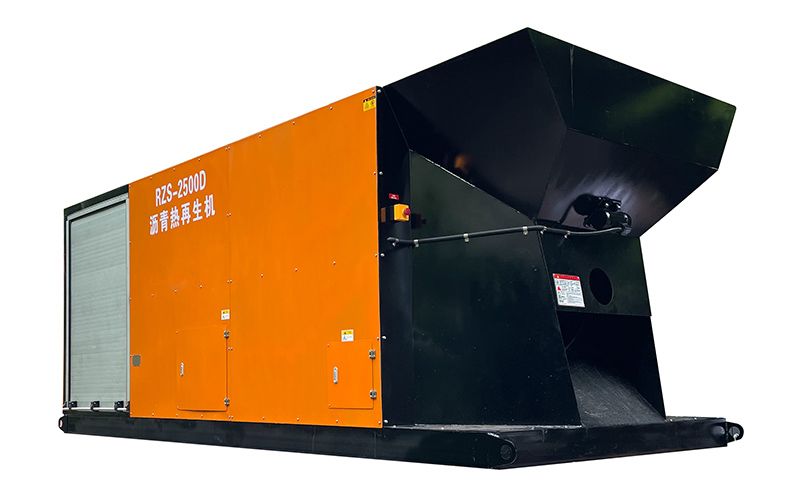

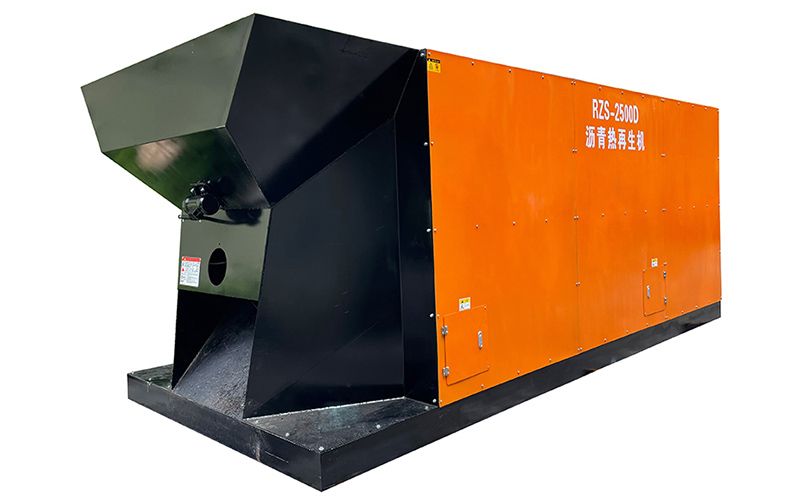

The design of 5-ton asphalt recycler RZS-2500 is easy to operate. It uses a drum-type material box that rotates 360 degrees to heat evenly, and has a double-layer heat insulation system. The burner uses Riello, a well-known Italian brand, with stable and reliable quality. In addition, the RZS-2500 asphalt recycler is also equipped with a smoke and dust removal filter device, which can eliminate a large amount of smoke and dust generated during the production process, and is suitable for urban road construction with strict environmental protection requirements.

crack sealing machine

Features

1. 360-degree rotation and uniform hot air heating (barrel with insulation layer), high thermal efficiency.

2. Smoke and dust removal circulation system, 1.5KW high temperature and high pressure fan, the working process is clean and environmentally friendly.

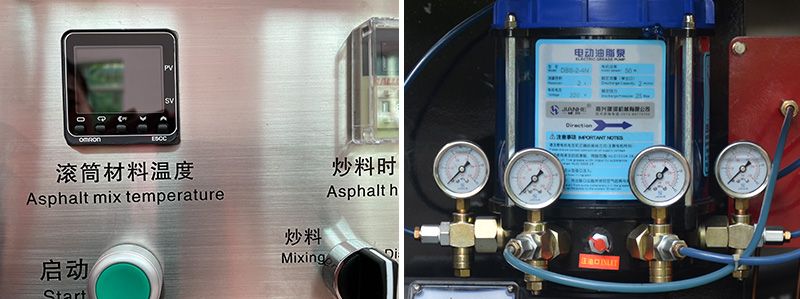

3. Integrated intelligent automatic constant temperature control system, Omron liquid crystal display temperature control, easy to operate.

4. One-button automatic lubrication system for main components, easy and fast maintenance.

crack sealing machine


Construction Process

crack sealing machine


ENUO MACHINERY focuses on the road maintenance industry. We are committed to providing customers with excellent road maintenance products and one-stop solutions. Creating greater value for customers is our pursuit. We have the ability to serve the global market, and will solve the problem of road maintenance for more people with unremitting efforts and continuous exploration spirit. Better Road, Better Life!


Model:

RZS-2500D

Dimensions:

4750  x 2020 x 1980 mm  L x W x H

Machine  weight:

2650  KG

Drum:

2500  L

Mixing  Efficiency:

2  ton per kettle, 5-6 ton per hour

Temperature  Controller:

Omron  LCD display intelligent temperature controller

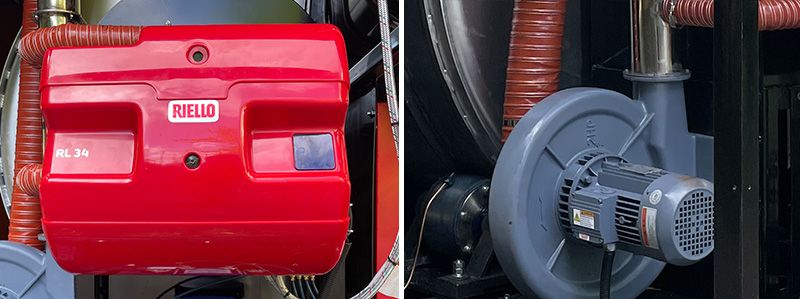

Burner:

Riello  two-stage burner  325 KW

Heating  Fuel:

Diesel    160 L

Heating  Method:

360-degree  rotation and hot air circulation heating

Heating  Time:

20  minutes for the first kettle, and 18 minutes for continuous heating

Discharge:

reverse  screw discharge

Discharge  Speed:

3  mins/ton

Smoke  Removal Fan Power:

1.5  KW

Lubrication  System:

One-button  automatic lubrication
